[iOS - swift] SkeletonView 스켈레톤 뷰 (로딩 뷰)

label 2개 skeletonView 적용

프레임워크

• SkeletonView


  pod 'SkeletonView'​

• 코드로 UI 작성에 편리를 위해 사용한 프레임워크


  pod 'Then'
  pod 'SnapKit'​

Label 2개에 SkeletonView 적용 방법

• 적용하려는 View에 isSkeletonView = true로 skeleton 활성화


  import SkeletonView

  ...

  label1.isSkeletonable = true
  label2.isSkeletonable = true​

• label1과 label2의 superView에도 isSkeletonable = true 활성화


  self.view.isSkeletonable = true​


• SkeletonView 프레임워크는 superview.showSkeleton()하면 subview들도 모두 skeleton이 동작하므로, 아래 코드로 skeleton 실행


  self.view.showSkeleton()​

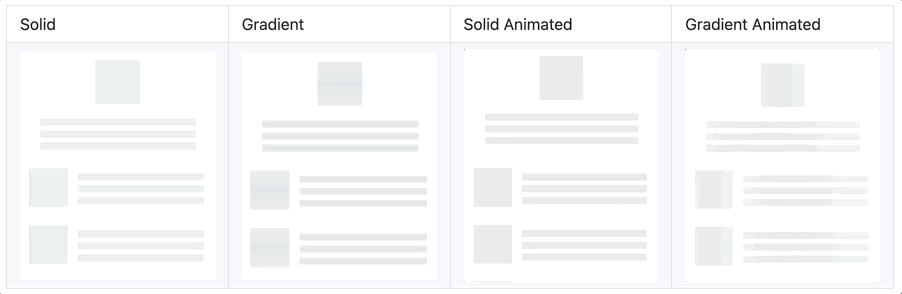

• skeleton의 종류


  // https://swiftobc.com/repo/Juanpe-SkeletonView-swift-ui

  (1) view.showSkeleton()                 // Solid
  (2) view.showGradientSkeleton()         // Gradient
  (3) view.showAnimatedSkeleton()         // Solid animated
  (4) view.showAnimatedGradientSkeleton() // Gradient animated​




• skeleton을 종료하고 싶은 경우 stopSkeleton()


  self.view.showSkeleton()
  DispatchQueue.main.asyncAfter(deadline: .now() + 3) {
    self.view.hideSkeleton()
  }​

skeleton

• 애니메이션을 주고 싶은 경우,SkeletonAnimationBuilder() 객체 사용

  • showAnimatedGradientSkeleton에서 transition값은 스켈레톤 애니메이션이 보여질때와 사라질때의 transition 정의


    let skeletonAnimation = SkeletonAnimationBuilder().makeSlidingAnimation(withDirection: .leftRight)
    self.view.showAnimatedGradientSkeleton(usingGradient: .init(colors: [.lightGray, .gray]), animation: skeletonAnimation, transition: .none)
    DispatchQueue.main.asyncAfter(deadline: .now() + 3) {
      self.view.hideSkeleton()
    }

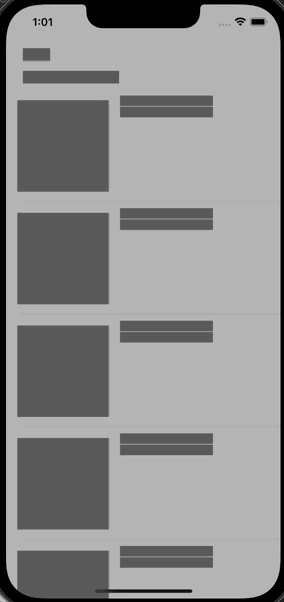

적용된 애니메이션

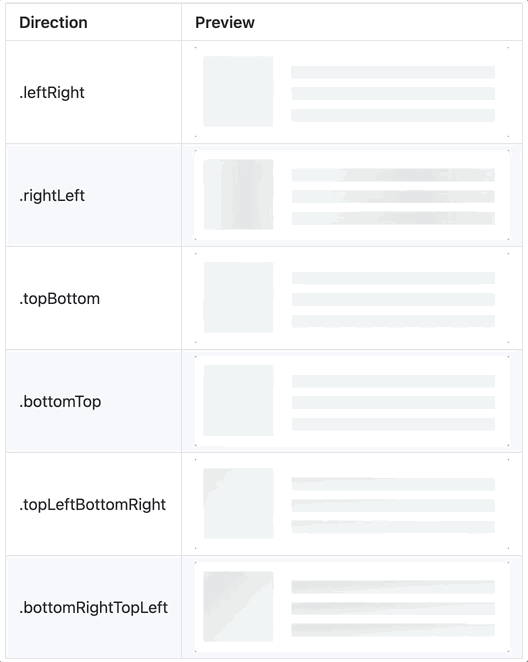

cf) withDirection에 들어갈 수 있는 값



https://swiftobc.com/repo/Juanpe-SkeletonView-swift-ui

TableView의 Cell 내용에 Skeleton 적용 방법

• UITableViewDataSource의 성격을 가지고 있는 SkeletonTableViewDataSource 준수하여 DataSource 완성


  public protocol SkeletonTableViewDataSource: UITableViewDataSource {
      func numSections(in collectionSkeletonView: UITableView) -> Int // Default: 1
      func collectionSkeletonView(_ skeletonView: UITableView, numberOfRowsInSection section: Int) -> Int
      func collectionSkeletonView(_ skeletonView: UITableView, cellIdentifierForRowAt indexPath: IndexPath) -> ReusableCellIdentifier
      func collectionSkeletonView(_ skeletonView: UITableView, skeletonCellForRowAt indexPath: IndexPath) -> UITableViewCell? // Default: nil
      func collectionSkeletonView(_ skeletonView: UITableView, prepareCellForSkeleton cell: UITableViewCell, at indexPath: IndexPath)
  }

• 구현


  self.tableView.dataSource = self

  ...

  extension ViewController: SkeletonTableViewDataSource {
    // tableView
    func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
      self.dataSource.count
    }

    func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
      let cell = tableView.dequeueReusableCell(withIdentifier: "cell", for: indexPath) as! MyCell
      let data = dataSource[indexPath.row]
      cell.prepare(picture: data.image, title: data.title, description: data.description)
      return cell
    }

    // skeletonView
    func collectionSkeletonView(_ skeletonView: UITableView, cellIdentifierForRowAt indexPath: IndexPath) -> ReusableCellIdentifier {
      return "cell"
    }

    func collectionSkeletonView(_ skeletonView: UITableView, skeletonCellForRowAt indexPath: IndexPath) -> UITableViewCell? {
      skeletonView.dequeueReusableCell(withIdentifier: "cell", for: indexPath)
    }

    func collectionSkeletonView(_ skeletonView: UITableView, numberOfRowsInSection section: Int) -> Int {
      UITableView.automaticNumberOfSkeletonRows // <- 편리하게 사용 가능
    }

    func numSections(in collectionSkeletonView: UITableView) -> Int {
      1
    }
  }​

• 주의해야할 사항
  • 주의 - Cell 자체에도 isSkeletonenable = true 설정 필요


    import UIKit
    import SnapKit
    import SkeletonView

    class MyCell: UITableViewCell {

      // 각 UI에 $0.isSkeletonable = true 필요 (titleLabel.isSkeletonable = true)

      // 자체 cell에다가도 isSkeletonable = true 필요

      override init(style: UITableViewCell.CellStyle, reuseIdentifier: String?) {
        super.init(style: style, reuseIdentifier: reuseIdentifier)
        self.isSkeletonable = true // <-
        self.contentView.isSkeletonable = true // <-

        ...
      }
    }​

• 사용하는 쪽


  override func viewDidLoad() {
    super.viewDidLoad()
    ...

    let skeletonAnimation = SkeletonAnimationBuilder().makeSlidingAnimation(withDirection: .leftRight)
      self.view.showAnimatedGradientSkeleton(usingGradient: .init(colors: [.lightGray, .gray]), animation: skeletonAnimation, transition: .none)
      self.fetchDataSource()
    }

    private func fetchDataSource() {
    DispatchQueue.main.asyncAfter(deadline: .now() + 3) {
      let datas = (0...30)
        .map {
          MyData(
            image: UIImage(named: "jake"),
            title: "title \($0)",
            description: "description \($0)"
          )
        }
      self.dataSource.append(contentsOf: datas)
      self.tableView.reloadData()
      self.view.hideSkeleton(reloadDataAfter: true, transition: .crossDissolve(0.5))
    }
  }​





cf) UICollectionView에서 skeleton 적용 방법

- SkeletonCollectionViewDataSource 준수

public protocol SkeletonCollectionViewDataSource: UICollectionViewDataSource {
    func numSections(in collectionSkeletonView: UICollectionView) -> Int  // default: 1
    func collectionSkeletonView(_ skeletonView: UICollectionView, numberOfItemsInSection section: Int) -> Int
    func collectionSkeletonView(_ skeletonView: UICollectionView, cellIdentifierForItemAt indexPath: IndexPath) -> ReusableCellIdentifier
    func collectionSkeletonView(_ skeletonView: UICollectionView, supplementaryViewIdentifierOfKind: String, at indexPath: IndexPath) -> ReusableCellIdentifier? // default: nil
    func collectionSkeletonView(_ skeletonView: UICollectionView, skeletonCellForItemAt indexPath: IndexPath) -> UICollectionViewCell?  // default: nil
    func collectionSkeletonView(_ skeletonView: UICollectionView, prepareCellForSkeleton cell: UICollectionViewCell, at indexPath: IndexPath)
}

* 전체 코드: https://github.com/JK0369/ExSkeletonView



* 참고

https://swiftobc.com/repo/Juanpe-SkeletonView-swift-ui

https://github.com/Juanpe/SkeletonView
